Quick Details

  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: 777(HUAGUANG)
  • Model Number: FU-955S
  • Type: Triode Transistor
  • Package Type: Surface Mount
  • weight: 37kgs
  • material: caramic-metal

Packaging & Delivery

Packaging Details: Size:540*540*1060(mm)
Weight:68 Kgs
Delivery Detail: within 5 days of delivery after got the money

Specifications

1.ISO9001:2008&CE
2.ceramic triodes anodes cooled by water.
3.Supper high frequence and high power
4.Out power 300KW

FU955S is a thorium-tungsten cathode of the direct thermal carbonization, metal-ceramic triode, the anode cooling method is water-cooled, the maximum anode dissipation power is 150KW output power is 300KW, the pipes are mainly used in industrial high frequency heating equipment.
Electrical parameters
Filament voltage: 17.5V
Filament current: 425A
The maximum instantaneous filament current: 675A
Magnification factor: 30
Transconductance: 100mA / V
Electrode capacitance:
Anode - the grid: 122pF
Cathode - the grid: 212pF
Anode - Cathode: 3.5pF

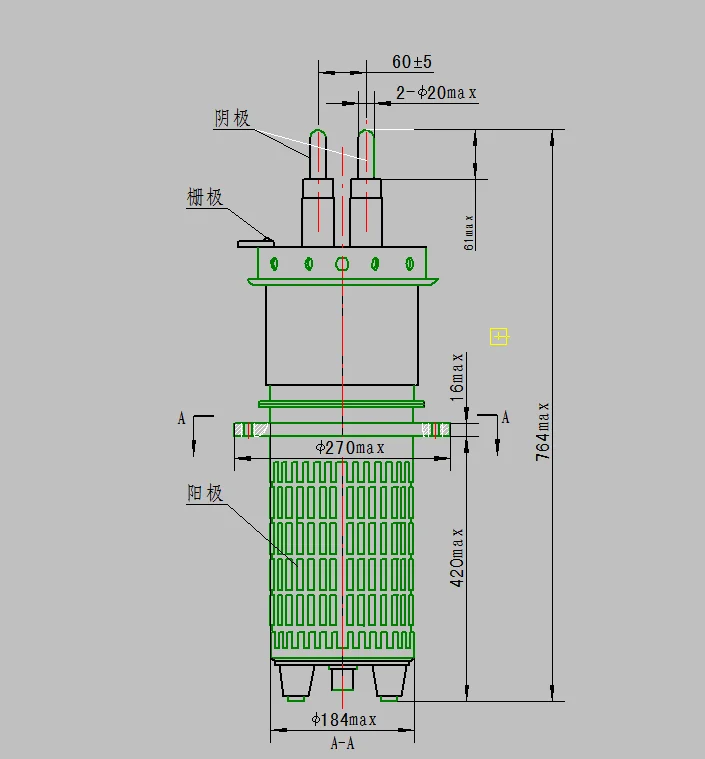

Mechanical properties:
Quality: (Approx.) 37Kg
Installation: vertical anode down
Cooling mode: water-cooled and air-cooled combination of
Water-cooled anode flow: ≥ 220L/min
Core columns the minimum air flow: 2.5m3/min
Shell and tube maximum temperature:
250 °C
Sealing at the highest temperature: 250 °C
Terminal maximum temperature: 200 °C
Maximum ratings
The maximum anode DC voltage: 15KV
Maximum anode DC current: 30A
Maximum grid DC current: 7.5A
Maximum anode dissipation power: 150KW
Maximum grid power dissipation: 8KW
In typical operation: class C telegraph
  Filament voltage: 17.5V
  Anode DC voltage: 14KV
  Grid DC bias:-1200V
 Anode DC current: 28.54A
 Grid DC current: 4.53A
 Anode output power: 301.9KW
