Eimac Electron Tube Triode rf power amplifier 3CX1500D3

FOB Reference Price:Get Latest Price
4 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
HUAGUANG
Model Number:
3CX1500D3/FU-957F;
Type:
Triode Transistor
Package Type:
Surface Mount
Material:
metal-ceramics

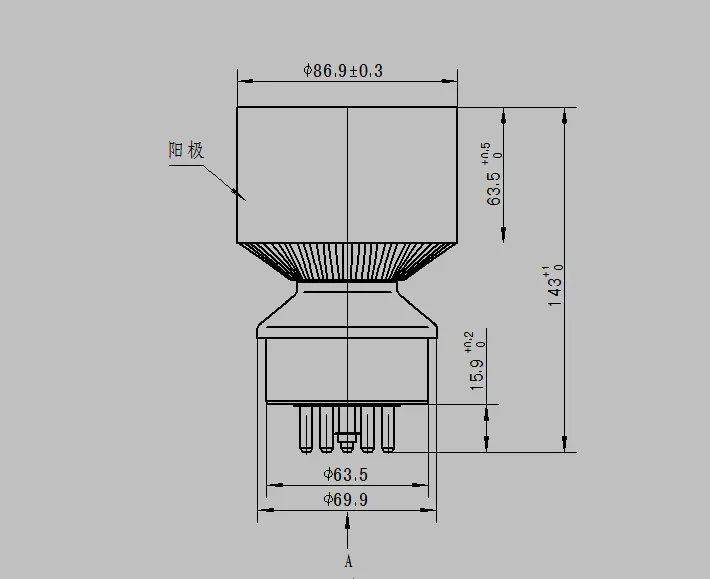

Length:
5.625 in/14.29 cm
Diameter:
3.42 in/8.69 cm
Weight:
1.5kgs
SupplyAbility
SupplyAbility:
60 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Carton dimensions 59*59*47cm/4pcs
Gross weight is about 16KGS
Port
Dalian port , Tianjin port , Beijing airport
Lead Time :
Within 2 days once the payment is confirmed

The 3CX1500D3 is a  forced air cooled . ceramic/metal ,medium-mu power triode desinged primarily for use in industrial radio frequencey heating servives  Input of 4.3KW is permissible up to 110MHZ.

Type...........................................FU-957F

Equivalent  on abroad...............3CX1500D3


Electrical

Filament..........................................................Thoriated Tungsten

Voltage.............................................................6.3    Volts

Current(at 6.3volts)..........................................22     Amperes

Maximum Frequency..........................................110  MHZ

Amplification Factor............................................24

Direct Interelectrode   Capacitances2

      Cin................................................................10   PF

      Cout..............................................................0.8  PF

      Cgp................................................................10  PF



Mechanical



Operating Position.................................Vertical,base up or down

Cooling..................................................................Forced by Air

Soctet........................................................................PSK410

Chimney.....................................................................PSK446

Maximum Operating Temperature

  Plate Seal..................................................................250°c

  Base Seal..................................................................250°c
