Quick Details

  • Place of Origin: Liaoning, China (Mainland)
  • Brand Name: HUAGUANG
  • Model Number: 7T85RB
  • Type: Triode Transistor
  • Package Type: Surface Mount
  • meterial: metal ceramics

Packaging & Delivery

Packaging Details: carton dimensions for 4 pcs ---59*59*47cm G.W is 20KGS
Carton dimensions for 6 pcs---:84*59*47cm G.W is 24KGS
Delivery Detail: within 2 days after got the money

7T85RB electron tubes is high-power metal ceramic triodes, anodes cooled by forced air, and  maximum anode dissipation powers is 2.5kW; when it work on frequency not higher than 110MHz, the output powers may attain to 5.1kW. They are mainly applied in industrial high-frequency heating equipments for oscillations or in radio equipments for amplifications.

  Parameters

Ceramic-metal triodes (2.5-35KW)

Type

FU-947F

Equivalent on abroad

7T85RB

Output power(KW)

5.1

Cathode

Cathode materials

Thoriated Tungsten

Voltage(V)

6.3

Current(A)

35

Main electric parameters

Amplification factor

21

Inter-electrode Capacitances (PF)

(Cathode earthed)



Filament-Grid

15

Filament-Anode

0.5

Anode-Grid

13

Maximum

Maximum anode dissipation (KW)

2.5

Maximum grid dissipation (W)

130

Maximum anode DC voltage (KV)

8

Maximum frequency (MHz)

110

Cooling

F

Weight (kg)

2.4

Additional: The information here may be modified with the products variation.

Cooling: F--Forced air cooling  S--Water cooling  Z--Vapor cooling

Certificate

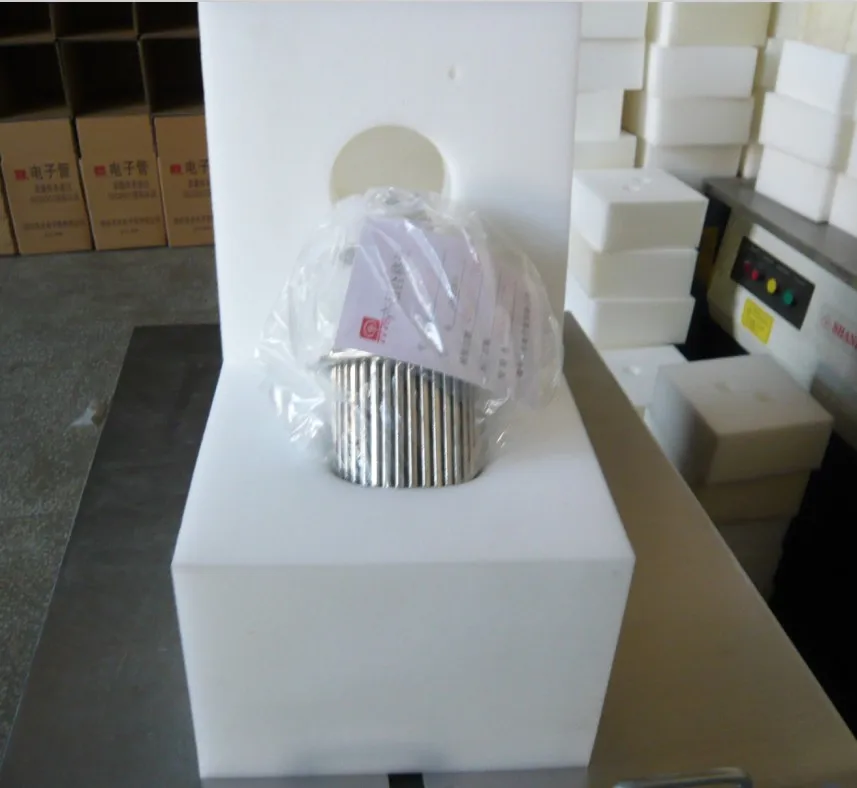

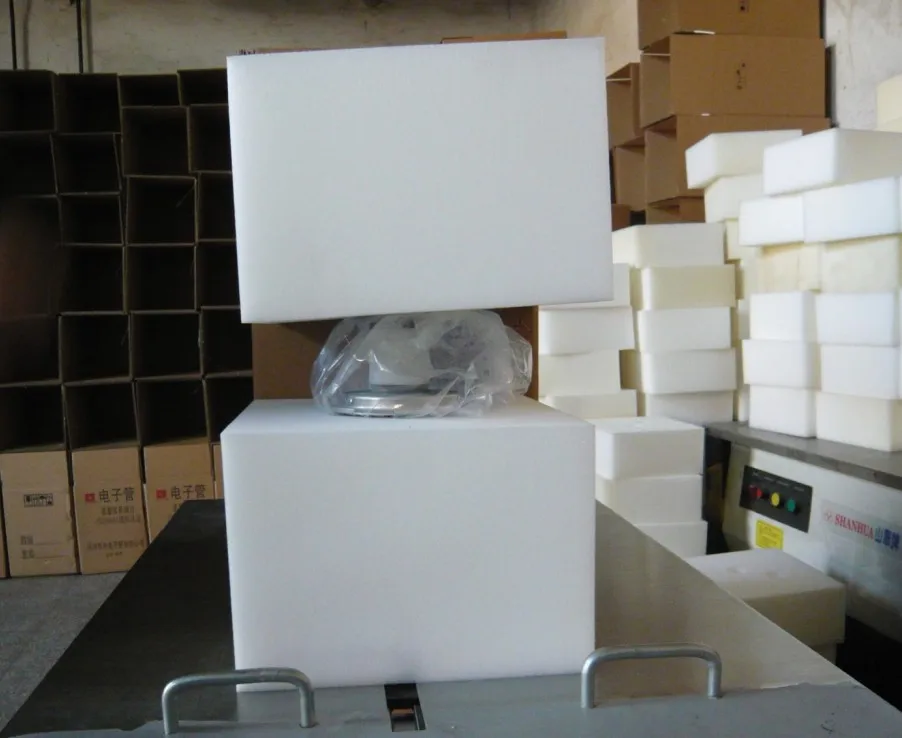

Package details
